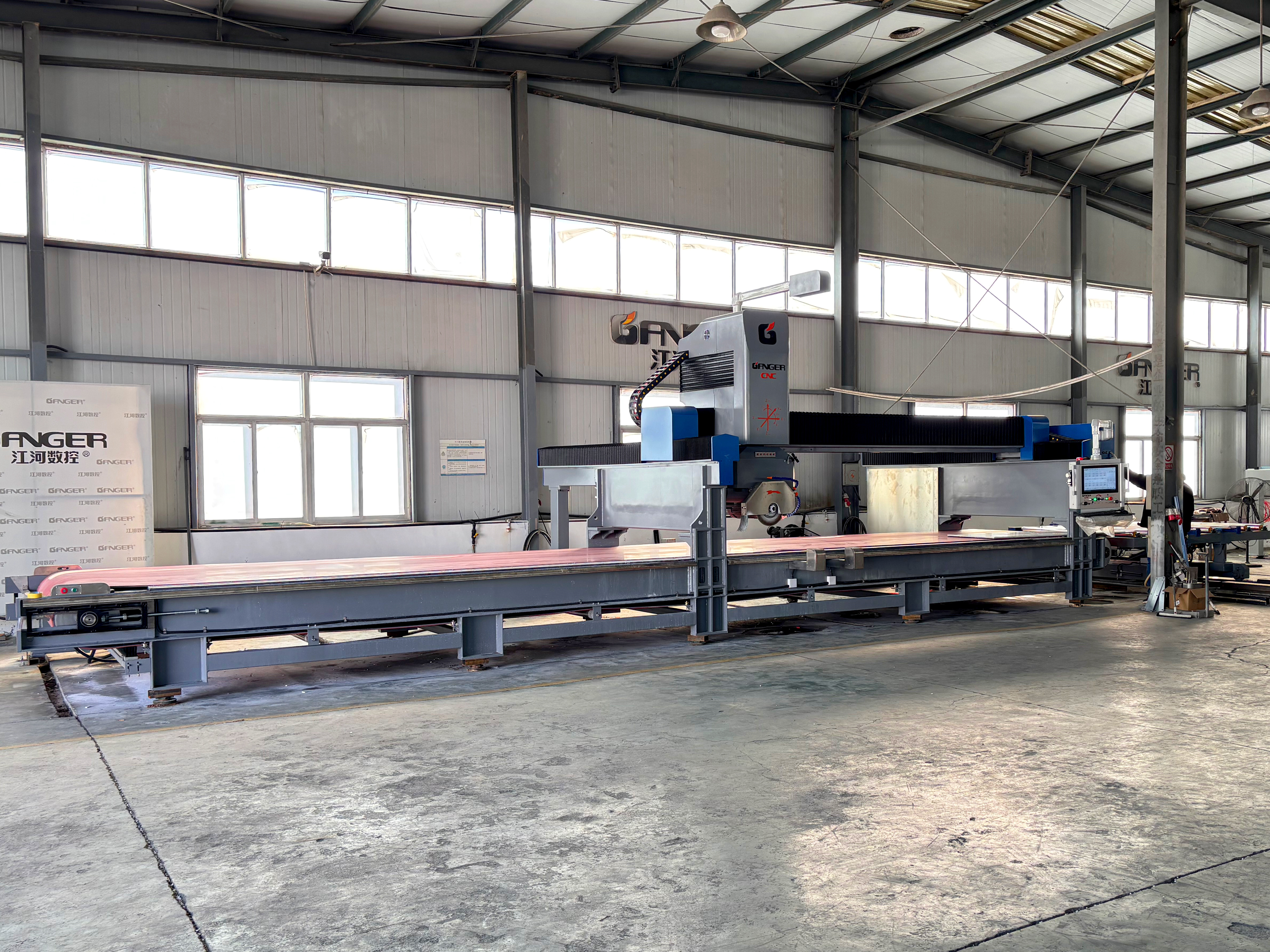

5 Axis Production Line GQ-3220DL
WhatsApp: +86 18615587055
Phone: +86 18615587055
Email: eric@gangercnc.tech
Send Inquiry

Machine Features.png


1.XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degreeautomatic rotation.

2.Vertical and horizontal cutting, multi-angle diagonal cutting.

3.Four sides miter (any angle between 0°-90°).

4.Cutting circle, Elipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.

5.Cutter bits, Contouring, Suction moving.

6. Intelligent control system.

7.With camera.

8.Automatic loading and unloading slabs.


Applicable Industries And Materials.png


Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stoneand other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc



Technical Parameters.png


ModelGQ-3220DL
X/Y/Z Axis working size3200*2000*500mm
Diameter of blade350mm
Working table size3200x2000mm
Blade Motor power15KW
Total power29KW
Rotation speed of blade3000~6000rpm
A axis rotation angle0°-90”
C axis rotation angle0--360°
Control systemGANGER
CameraYES
Gross weight10T



Product Details.png

plc

CNC CONTROLLER

Easy PLC operate


2

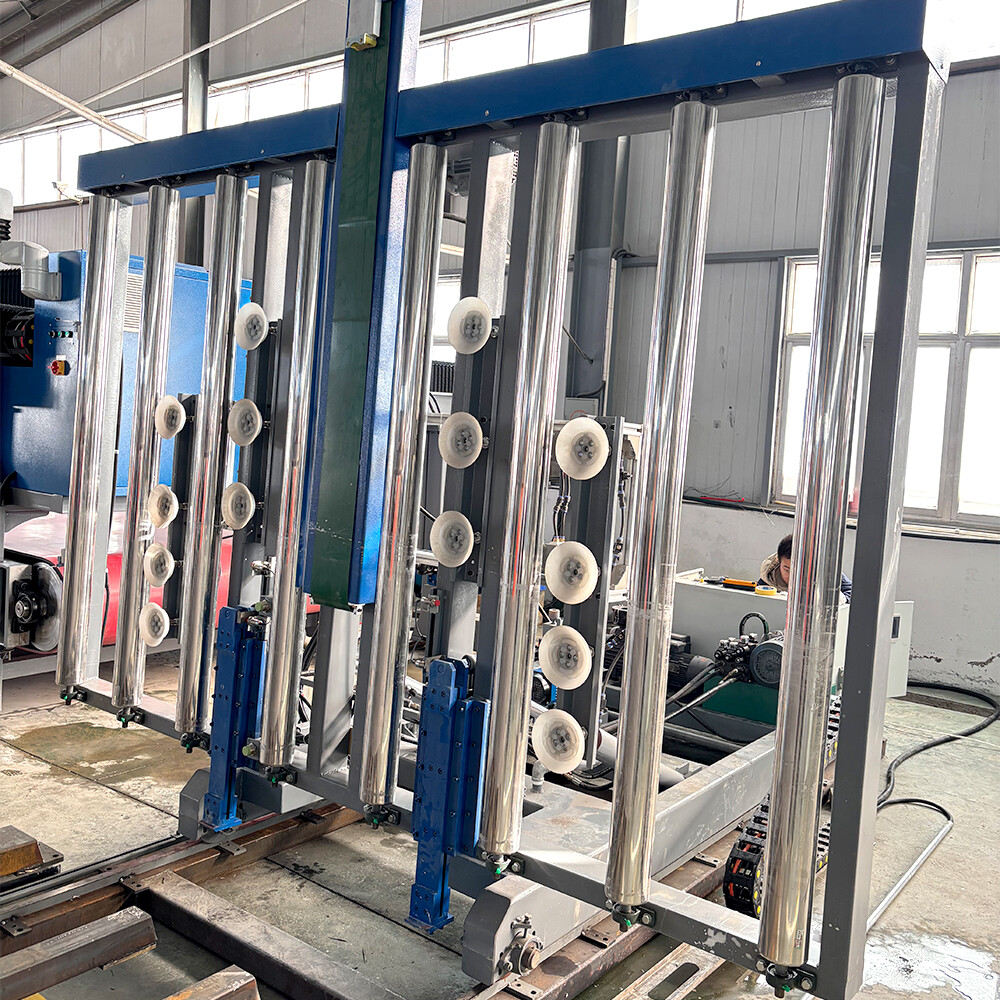

AUTOMATIC LOADING AND UNLOADING DEVICE

Table tilts 85 degree to load slabs easily


4

AUTOMATIC BELT CONVEYOR

Cutting process is automated and programmed



WITH CAMERA

Read slab size/Draw on slab photo directly

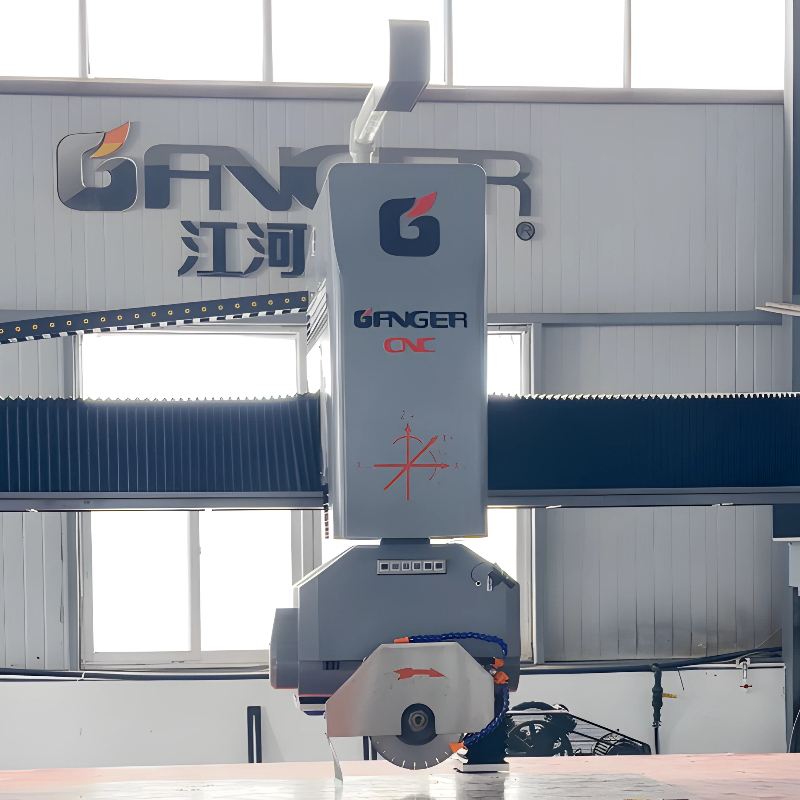

XYZAC FIVE AXIS

A axis 0 to 90 degree automatic rotation

C axis 0 to 360 degree automatic rotation

主图

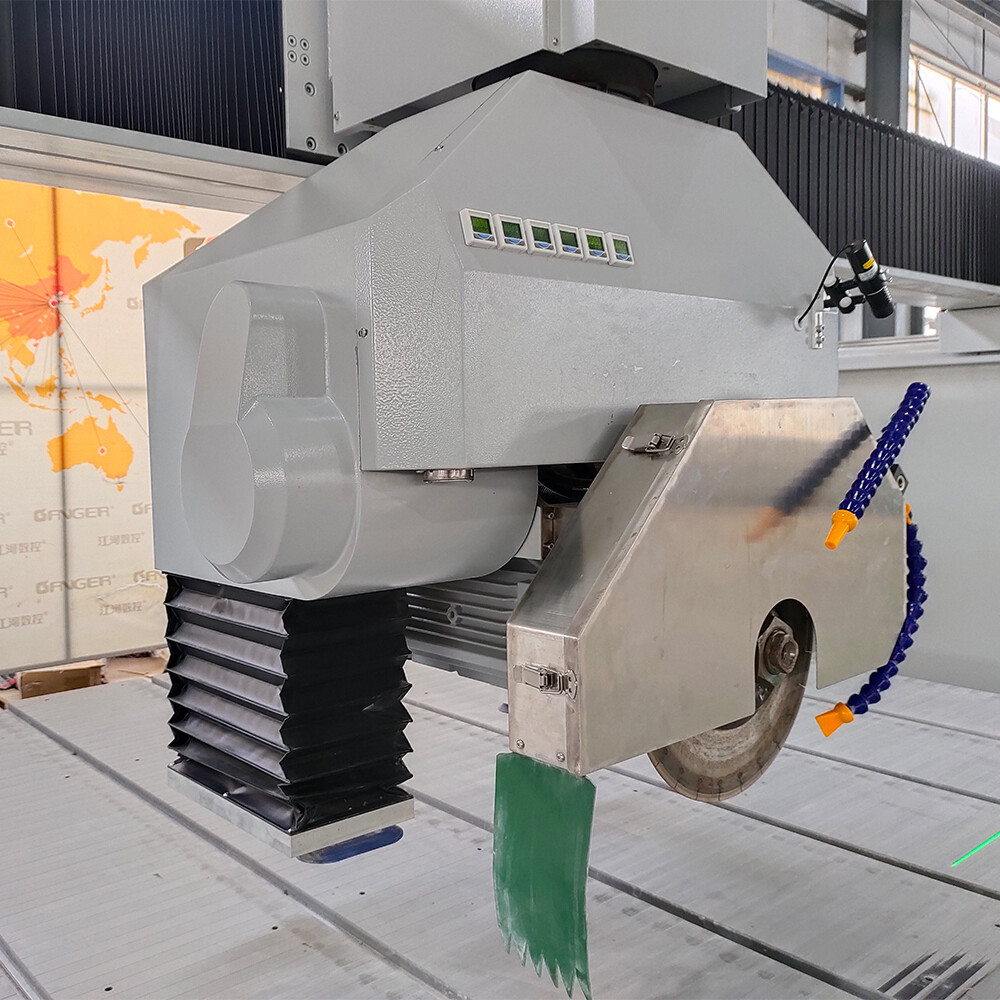

SUCTION CUP

Suction moving Prevent overcutting



photobank

CUT THE SAMPLE

Cutting circle/ Ellipse cutting/Sector cutting/

L-tops cutting/ Sink cut-out/ Arc cutting

8

PROFILE PROCESSING

Cutting profiling process






More Application

FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free equipment

maintenance

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

About Us

1.QUALITY CONTROL

  • Dur professional technical engineers inspect the processing to ensure the quality of products
  • Each machines will run around 24 hours and tested 8 hours before delivery to ensure normal using in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under normal use & Lifetime maintenance free of charge
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and oil painting customized (agent available or MOQ 10 sets



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized model: Depends on special spare parts delivery time



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
